HPK

Ürün Kodu HFWSPJ

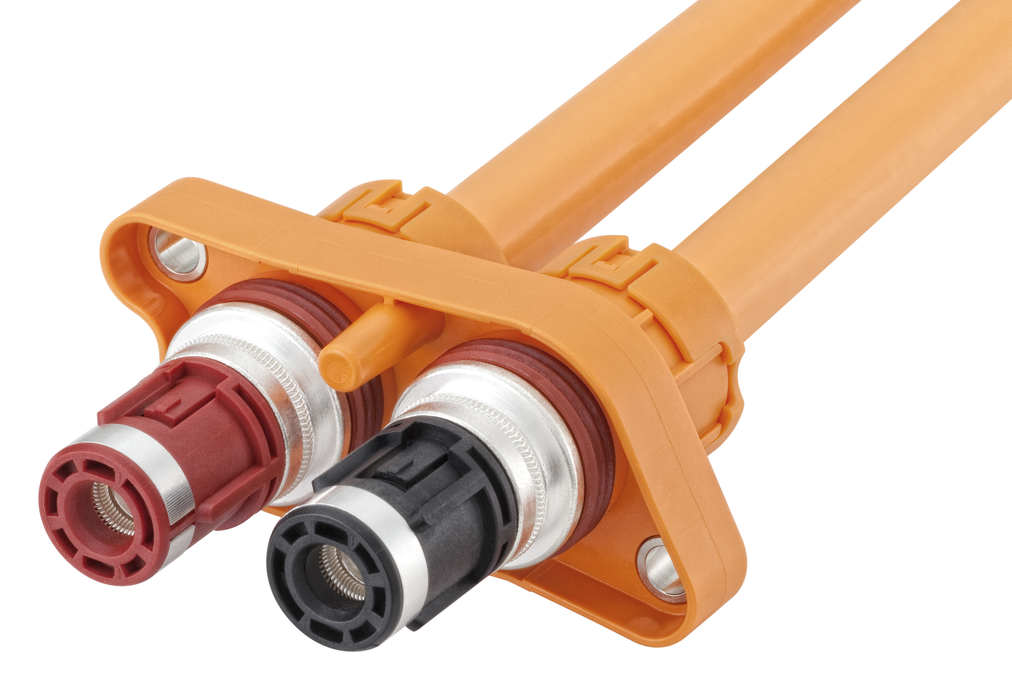

The Rosenberger HPK system can achieve 275 A at 85 °C up to 1000 V. With their excellent vibration and current capacity performance the HPK connectors are well-suited to typical high-voltage electric vehicle applications such as the connection between battery, inverter and PDU. The range includes 1-, 2-, or 3-pole connectors which for maximum flexibility can be used with copper or aluminum cables in four different cable cross sections. Straight and angled cable couplers as well as corresponding headers are available, either with or without HVIL (high-voltage interlock).

Rosenberger

Features

Current capacitiy (50 mm²): 275 A at 85 °C
Working voltage 1000 V DC
Test voltage 3200 V DC
Temperature range -40 °C to +140 °C
IP class mated acc. to IP6K9K / IPX8 / IPXXD
IP class unmated acc. to IPXXB
Vibration class acc. to LV215 PG17-II
Mating cycles ≥ 50
Cross sections 16 mm², 25 mm², 35 mm², 50 mm²
